Special multi-level high-quality wave plate dual-wavelength wave plate

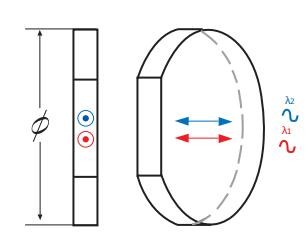

The dual-wavelength wave plate is a special multi-level wave plate, which can achieve the phase delay we need at two wavelengths at the same time, and is widely used in solid-state frequency-doubling lasers to improve conversion efficiency.

Material :
Crystal Quartz
Dimension Tolerance :
+0.0/-0.2mm
Retardation Tolerance :
λ/100
Parallelism :
<1 arc second
Surface Quality :
20/10 scratch and dig
Clear Aperture :
>90% central area
Coating :
R<0.5%@two wavelengths
Damage Threshold :
>5J/cm2, 20ns, 20Hz

Inquire Now

Product categories

New Products

Product Details

Product Name

Special multi-level high-quality wave plate dual-wavelength wave plate

Product description

Product Parameters

Material	Crystal Quartz
Dimension Tolerance	+0.0/-0.2mm
Wave front Distortion	λ/8@632.8nm
Retardation Tolerance	λ/100
Parallelism	<1 arc second
Surface Quality	20/10 scratch and dig
Clear Aperture	>90% central area
Coating	R<0.5%@two wavelengths
Damage Threshold	>5J/cm2, 20ns, 20Hz
