The mid-infrared wave plate includes 1/4 zero-order wave plate and 1/2 zero-order wave plate, and the wavelength range is 2800-10600nm.

  • Material :

    Quartz crystal
  • Specifications :

    D5-D100mm
  • Dimension Tolerance :

    +0.0/-0.2mm
  • Wave front Distortion :

    λ/8-λ/10@632.8nm
  • Retardation Tolerance :

    λ/60-λ/150(λ<400nm) λ/150-λ/350(400nm<λ<700nm) λ/350-λ/600(λ>700nm)
  • Parallelism :

    <1″
  • Surface Quality :

    20/10
  • Clear Aperture :

    >90%
  • Coating :

    AR Coating,R<0.25%@central wavelength
  • Damage Threshold :

    >10J/cm2, 20ns, 20Hz @1064nm

Product Name

Mid-infrared wave plate

Product description

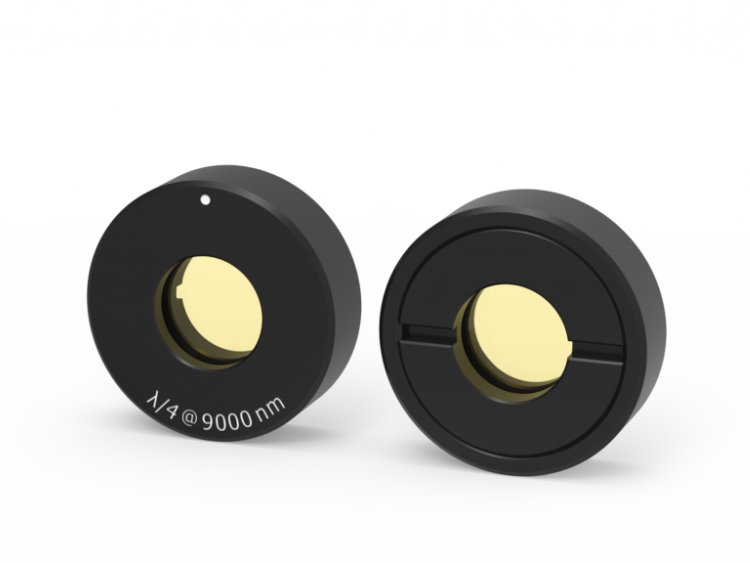

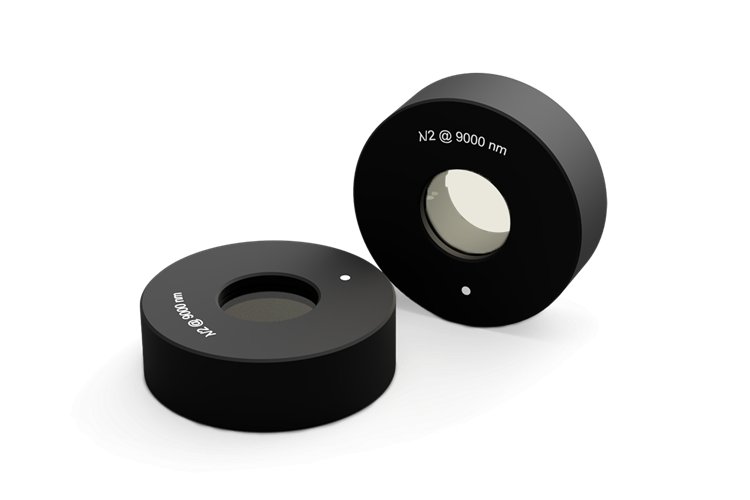

This wave plate is monolithic and can generate 1/4 or 1/2 phase delays. Other delays need to be customized. The lens is installed in a 25.4x6mm black anodized metal mount with an effective light-passing aperture of ø10mm.



Product Parameters

Wavelength range
2.8-10.6um
Delay tolerance
<λ/ 50 @ 20 °c
Optical aperture
Ø10mm
Parallelism
<1 arc minute
Surface Quality
60/40
Coating
Double-sided AR antireflection film (R<1%) or uncoated
Damage Threshold
2 J / cm 2 @ 9000 nm,10 ns (for 9000nm wave plate)
