Quartz UV glue high quality glued zero grade picks

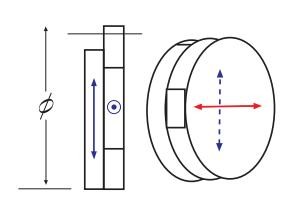

The glued zero-order wave plate is composed of two pieces of quartz glued together by UV glue, and the optical axes are orthogonal. The thickness of two pieces of quartz The difference can produce a zero-order phase delay. Zero-order waveplates are insensitive to temperature and wavelength.

Material :
Crystal Quartz
Dimension Tolerance :
+0.0/-0.2mm
Wave front Distortion :
λ/8 @632.8nm((just for single plate)
Retardation Tolerance :
λ/300
Parallelism :
<1″((just for single plate)
Surface Quality :
20/10
Clear Aperture :
>90%
Coating :
AR Coating，R<0.25%@central wavelength
Damage Threshold :
>500mJ/cm2, 20ns, 20Hz @1064nm

Inquire Now

Product categories

New Products

Product Details

Product Name

Quartz UV glue high quality glued zero grade picks

Product description

The glued zero-order wave plate is composed of two pieces of quartz glued together by UV glue, and the optical axes are orthogonal. The thickness of two pieces of quartz

The difference can produce a zero-order phase delay. Zero-order waveplates are insensitive to temperature and wavelength.

Product Parameters

Material	Crystal Quartz
Dimension Tolerance	+0.0/-0.2mm
Wave front Distortion	λ/8 @632.8nm((just for single plate)
Retardation Tolerance	λ/300
Parallelism(single plate)	<1″((just for single plate)
Surface Quality	20/10
Clear Aperture	>90%
Coating	AR Coating，R<0.25%@central wavelength
Damage Threshold	>500mJ/cm2, 20ns, 20Hz @1064nm

Why Choose Us？

About HuaKe

Company is mainly engaged in crystal devices, opticalcomponents, precision optics design, production and salesof one-stop service.

Crystal products KTP Nd: YVO 4, YVO4YVO4 Wedge, TGG crystal and other laser and birefringentcrystal; optical products are lenses, prisms, wedge anglepiece and a variety of wave plate and so on.

Companies adhere to the "quality, efficiency and service'for business purposes,has madewidely recognized by domestic and foreigncustomers.

Looking ahead, we will continue to innovatewilling to work with customers to grow, and win-wincooperation, the brilliant future of China's optical field andmake unremitting efforts.

FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples?is it free or extra?

A: We can provide free samples if we havestock optics as your request,while custom produced samples are not free.

Q:What is your MOQ?

A:MOQ is 10pcs for most of the optics,while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Hot Tags : Quartz Wave plate Zero Order Wave plate Glued zero-order wave plate Quartz Glued zero-order wave plate Quartz UV glue high quality glued zero grade picks Linear Glass Polarizing Filters
