Product Name
Customized professional high quality achromatic depolarizer
Product Description

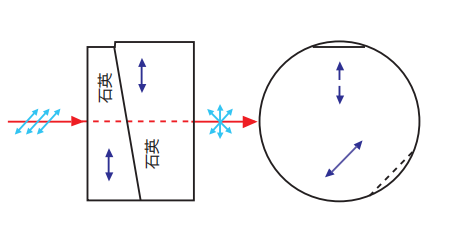

Achromatic depolarizers consist of two crystal quartz wedges bonded or photoresisted, one of which is twice as thick as the other.
The optical axis of each optical wedge is parallel to the light-transmitting surface, and the angle between the optical axes of the two crystal quartz optical wedges is 45 degrees.
This particular design does not require placing the optical axis of the achromatic depolarizer at a specific angle, a feature that is especially useful in applications where the initial polarization state of the light is unknown or changes over time.
Product Parameters
| Material |
Crystal Quartz |
| Dimension |
Ø5-50mm |
| Dimension Tolerance |
+0.0/-0.2mm |
| Thickness Tolerance |
±0.2mm |
| Surface Quality |
20/10 |
| Parallelism |
<1 arc minute |
| Beam Deviation |
<3 arc minutes |
| Flatness |
λ/8@632.8nm |
| Clear Aperture |
>90% |
| Coating |
Uncoated，it can be coated according to customer |
| Damage Threshold |
Cemented: >500mJ/cm2, 20ns, 20Hz @1064nm/Optically contacted: >5J/cm2, 20ns, 20Hz @1064nm |
Product Details
Why Choose Us？
About HuaKe
Company is mainly engaged in crystal devices, opticalcomponents, precision optics design, production and salesof one-stop service.
Crystal products KTP Nd: YVO 4, YVO4YVO4 Wedge, TGG crystal and other laser and birefringentcrystal; optical products are lenses, prisms, wedge anglepiece and a variety of wave plate and so on.
Companies adhere to the "quality, efficiency and service'for business purposes,has madewidely recognized by domestic and foreigncustomers.
Looking ahead, we will continue to innovatewilling to work with customers to grow, and win-wincooperation, the brilliant future of China's optical field andmake unremitting efforts.
FAQ
Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms
Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.
Q: Do you provide samples?is it free or extra?
A: We can provide free samples if we havestock optics as your request,while custom produced samples are not free.
Q:What is your MOQ?
A:MOQ is 10pcs for most of the optics,while MOQ could be only one piece if you need a element in big dimention.
Q: What is your terms of payment ?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.
