Factory direct sales of customized high-quality air-gap zero-order waveplates

Factory direct sales of customized high-quality air-gap zero-order waveplates

Factory direct sales of customized high-quality air-gap zero-order waveplates

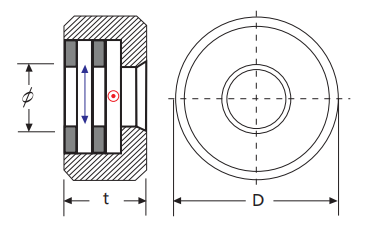

The air-gap zero-order wave plate consists of two pieces of quartz installed in the bracket to form an air gap, and the optical axes are orthogonal.

  • Material :

    Quartz crystal
  • Specifications :

    D5-D100mm
  • Dimension Tolerance :

    +0.0/-0.2mm
  • Wave front Distortion :

    λ/8-λ/10@632.8nm
  • Retardation Tolerance :

    λ/60-λ/150(λ<400nm) λ/150-λ/350(400nm<λ<700nm) λ/350-λ/600(λ>700nm)
  • Parallelism :

    <1″
  • Surface Quality :

    20/10
  • Clear Aperture :

    >90%
  • Coating :

    AR Coating,R<0.25%@central wavelength
  • Damage Threshold :

    >10J/cm2, 20ns, 20Hz @1064nm

Product Name

Factory direct sales of customized high-quality air-gap zero-order waveplates

Product description

The air-gap zero-order wave plate consists of two pieces of quartz installed in the bracket to form an air gap, and the optical axes are orthogonal.

Product Parameters

Material
Quartz crystal
specifications
D5-D100mm
Dimension Tolerance
+0.0/-0.2mm
Wave front Distortion
λ/8-λ/10@632.8nm
Retardation Tolerance
λ/60-λ/150(λ<400nm)
λ/150-λ/350(400nm<λ<700nm)
λ/350-λ/600(λ>700nm)
Parallelism
<1″
Surface Quality
20/10
Clear Aperture
>90%
Coating
AR Coating,R<0.25%@central wavelength
Damage Threshold
>10J/cm2, 20ns, 20Hz @1064nm

Why Choose Us?

About  HuaKe

Company is mainly engaged in crystal devices, opticalcomponents, precision optics design, production and salesof one-stop service.
Crystal products KTP Nd: YVO 4, YVO4YVO4 Wedge, TGG crystal and other laser and birefringentcrystal; optical products are lenses, prisms, wedge anglepiece and a variety of wave plate and so on.
Companies adhere to the "quality, efficiency and service'for business purposes,has madewidely recognized by domestic and foreigncustomers.
Looking ahead, we will continue to innovatewilling to work with customers to grow, and win-wincooperation, the brilliant future of China's optical field andmake unremitting efforts.



FAQ

Q: What are your main products?
A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?
A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples?is it free or extra?
A: We can provide free samples if we havestock optics as your request,while custom produced samples are not free.

Q:What is your MOQ?
A:MOQ is 10pcs for most of the optics,while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.
