The achromatic wave plate is composed of birefringent crystals of two different materials. Since the dispersion of the two materials is different, a relatively uniform phase retardation can be achieved in a wide wavelength range.

  • Material :

    Crystal Quartz+Magnesium Fluoride
  • Specifications :

    D5-D50mm
  • Dimension Tolerance :

    +0.0/-0.2mm
  • Wave front Distortion :

    <λ/4 @632.8nm(just for air space wave plate)
  • Retardation Tolerance :

    <λ/100
  • Parallelism :

    <1″
  • Surface Quality :

    40/20
  • Clear Aperture :

    >90%
  • Coating :

    AR Coating,R<1%
  • Damage Threshold :

    Agglutination: >500mJ/cm2, 20ns, 20Hz @1064nm Air space: >5J/cm2, 20ns, 20Hz @1064nm
  • Standard Wavelength :

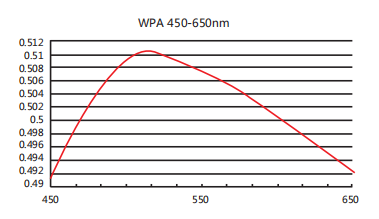

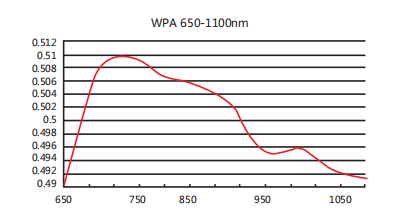

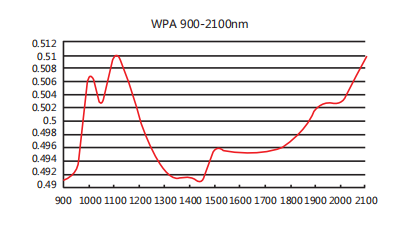

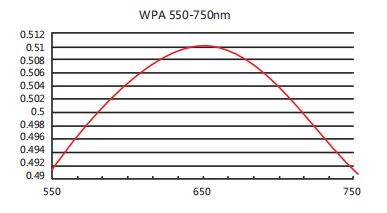

    450-650nm 550-750nm 650-1100nm 900-2100nm

Product Name

High-quality achromatic picks can be customized

Product Description

Since the achromatic wave plate has a uniform and flat response to the wavelength and provides the largest wavelength range (310 to 1100 nm or 600 to 2700 nm), it can be used in tunable lasers, multi-wavelength laser systems and other broadband light source products

Glued and air gap options available
Ultra-wide wavelength bandwidth
Support customer customization

Product Parameters

Material Crystal Quartz
Specifications D5-D25.4mm/1*1.9mm 3*3mm
Dimension Tolerance +0.0/-0.2mm
Wave front Distortion λ/8-λ/10@632.8nm
Retardation Tolerance λ/500
Parallelism <1″
Surface Quality 20/10
Clear Aperture >90%
Coating AR Coating,R<0.25%@central length
Damage Threshold >10mJ/cm2, 20ns, 20Hz @1064nm
