High-quality low-grade waveplates for optical systems

High-quality low-grade waveplates for optical systems
High-quality low-grade waveplates for optical systems
High-quality low-grade waveplates for optical systems

High-quality low-grade waveplates for optical systems

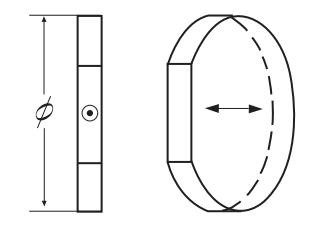

Low-level waveplates are machined from a single piece of quartz crystal, producing phase delays of several orders to the design wavelength.

  • Material :

    Quartz crystal
  • Specifications :

    D5-D50mm
  • Dimension Tolerance :

    +0.0/-0.2mm
  • Wave front Distortion :

    λ/10 @632.8nm
  • Retardation Tolerance :

    λ/60-λ/150(λ<400nm) λ/150-λ/350(400nm<λ<700nm) λ/350-λ/600(λ>700nm)
  • Parallelism :

    <1″
  • Surface Quality :

    20-10
  • Clear Aperture :

    >90%
  • Coating :

    AR Coating,R<0.25%@central wavelength
  • Damage Threshold :

    >10J/cm2, 20ns, 20Hz @1064nm
  • Acceptance Angle :

    10°

Product Name

High-quality low-grade waveplates for optical systems

Product description

At about 0.3-0.5mm, the wavelength bandwidth is narrow, and the temperature stability and field of view are not as good as zero-order waveplates.

available in monochrome In a very good light source system.

Product Parameters



Material

Quartz crystal

Specifications

D5-D50mm

Dimension Tolerance

+0.0/-0.2mm

Wave front Distortion

λ/10 @632.8nm



Retardation Tolerance

λ/60-λ/150(λ<400nm) λ/150-λ/350(400nm<λ<700nm)

λ/350-λ/600(λ>700nm)

Acceptance Angle

10°

Parallelism

<1″

Surface Quality

20-10

Clear Aperture

>90%

Coating

AR Coating,R<0.25%@central wavelength

Damage Threshold

>10J/cm2, 20ns, 20Hz @1064nm
