High quality wedge window panels

HuaKe offers all types of windows made of high precision. Materials including Optical glass, Fused Silica, Calcium Fluoride, Magnesium Fluoride, Silicon, Germanium and so on.

Material :
K9，UV Fused Silica
Dimension Tolerance :
General Precision:+0.0/-0.2mm---High Precision:+0.0/-0.05
Wave front Distortion :
<λ/8 per 25mm@633nm
Surface Quality :
General Precision:60/40---High Precision:10-5
Coating :
General Precision:R<0.25%，0°Angle of incidence 0°---High Precision:R＜0.1% Angle of incidence 0°
Damage Threshold :
20J/cm2 , 10ns, 10Hz, 1064nm

Inquire Now

Product categories

New Products

Product Details

Product Name

High quality wedge window panels

product description

In addition, we can provide various coating on optical windows available upon request,It has High power coating、Part of the reflective coating、The polarization beamsplitters、Eliminate polariza- tion beamsplitters.

Product Parameters

	General Precision	High Precision
Material	K9，UV Fused Silica
Dimension Tolerance	+0.0/-0.2mm	+0.0/-0.05
Thickness Tolerance	±0.2mm	+/-0.1
Clear Aperture	＞80%	>90%

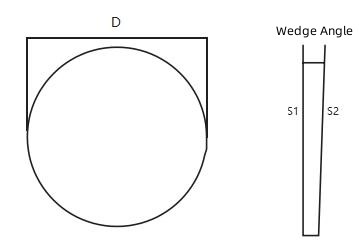

Wedge Angle and precision	10′~15′，+/-3′
Surface Quality	60/40	10-5
Flatness	1λ	λ/10
Wave front Distortion	<λ/8 per 25mm@633nm
Bevel	<0.5mmx45°	＜0.1x45°
Coating	R<0.25%，0°Angle of incidence 0°	R＜0.1% Angle of incidence 0°
Damage Threshold	20J/cm2 , 10ns, 10Hz, 1064nm

Why Choose Us？

About HuaKe

Company is mainly engaged in crystal devices, opticalcomponents, precision optics design, production and salesof one-stop service.

Crystal products KTP Nd: YVO 4, YVO4YVO4 Wedge, TGG crystal and other laser and birefringentcrystal; optical products are lenses, prisms, wedge anglepiece and a variety of wave plate and so on.

Companies adhere to the "quality, efficiency and service'for business purposes,has madewidely recognized by domestic and foreigncustomers.

Looking ahead, we will continue to innovatewilling to work with customers to grow, and win-wincooperation, the brilliant future of China's optical field andmake unremitting efforts.

FAQ

Q: What are your main products?

A: Optical lens,mirrors,windows,filters,prisms

Q: How long is your delivery time?

A: In general delivery time is about one month for custom produced optics.except stock ones or some special optics.

Q: Do you provide samples?is it free or extra?

A: We can provide free samples if we havestock optics as your request,while custom produced samples are not free.

Q:What is your MOQ?

A:MOQ is 10pcs for most of the optics,while MOQ could be only one piece if you need a element in big dimention.

Q: What is your terms of payment ?

A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Hot Tags : BREWSTER WINDOW Dielectric Coated Filters Spherical Lens Achromatic Lenses Eliminate polariza- tion beamsplitters High quality wedge window panels
