High quality Optics TGG Crystal

TGG is an excellent magneto-optical crystal used in various Faraday devices(Rotator and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.

Material :
Magneto-optic
Parallelism :
< 30 arc Seconds
Surface Quality :
10/5 Scratch/Dig

Inquire Now

Product categories

New Products

Product Details

Product Name

High quality Optics TGG Crystal

Product Introduction

TGG is an excellent magneto-optical crystal used in various Faraday devices(Rotator and Isolator) in the range of 400nm-1100nm, excluding 475-500nm.

Main Properties

Chemical Formula	Tb3Ga5O12
Lattice Parameter	a=12.355Å
Growth Method	Czocralski
Density	7.13g/cm3
Mohs Hardness	8.0
Melting Point	1725 ℃
Refractive Index	1.954 @ 1064nm

Processing Index

Orientation	[111] within ±15 arc min
Wave Front Distortion	< 1/8 wave
Extinction Ratio	> 30dB
Diameter	+0.00mm/-0.05mm
Length	+0.2mm/-0.2mm
Chamfer	0.10mm @ 45°
Flatness	< 1/10 wave @633nm
Parallelism	< 30 arc Seconds
Perpendicularity	< 5 arc min
Surface Quality	10/5 Scratch/Dig

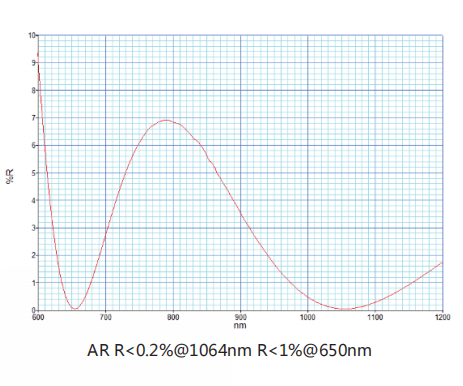

AR coating	<0.2%

Product Details
